There are various kinds of high pressure high temperature forged steel valves as below widely used in power stations:

Valve types: Gate valve, bellows seal gate valve, straight type Globe valve, Y type globe valve, bellows seal globe valve, swing check valve, lift type check valve, ball type check valve, Y type check valve, Y type strainer and ball valve.

Valve ends: Welded Flanged ends, Integral flanged ends, Butt-welded ends, Socket welded ends, Threaded ends according to NPT or BSP, BW Ends welded with short pipes

Bonnet type: Bolted bonnet, welded bonnet, pressure self-seal bonnet for pressure rating 900lbs, 1500lbs, 2500lbs, 4500lbs

Materials: A105, LF2, LF3, F11, F22, F91, F92, F304, F316, F316L, F316Ti, F51, F53, F55, F904L, Alu-bronze, Monel, Inconel etc.

Design standards: API 602, BS5352, ASME B16.34

Flange standards: ASME B16.5, EN1092-1

BW Standards: ASME B16.25, EN 12627

SW Standards: ASME B16.11

Pressure rating: 150lbs, 300lbs, 600lbs, 800lbs, 900lbs, 1500lbs, 2500lbs, 4500lbs

Size range: 1/4'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 1 3/4'', 2'', 2 1/2'', 3'', 4'' etc.

Temperature range: -196 ℃——650℃

The production process of high temperature high pressure forged valves is as follows:

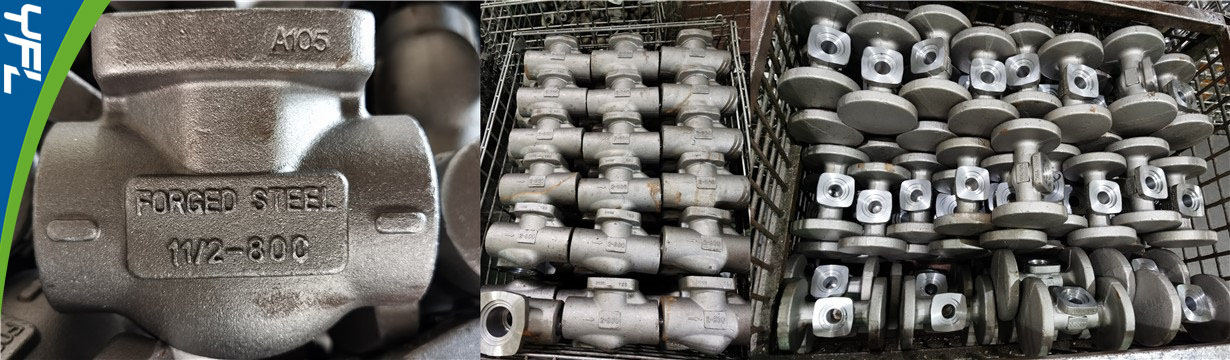

Body forged by various kinds of forged steel included carbon steel, Cr-Mo steel for high temperature, Stainless steel for corrosive medium, Alu-bronze for seawater etc.

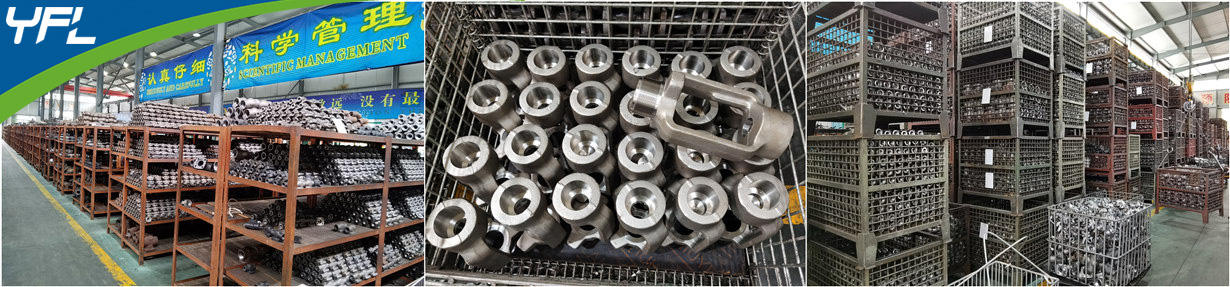

There are lots of spare parts like yoke, stem and flange available in stock to deliver the forged valves in short time.

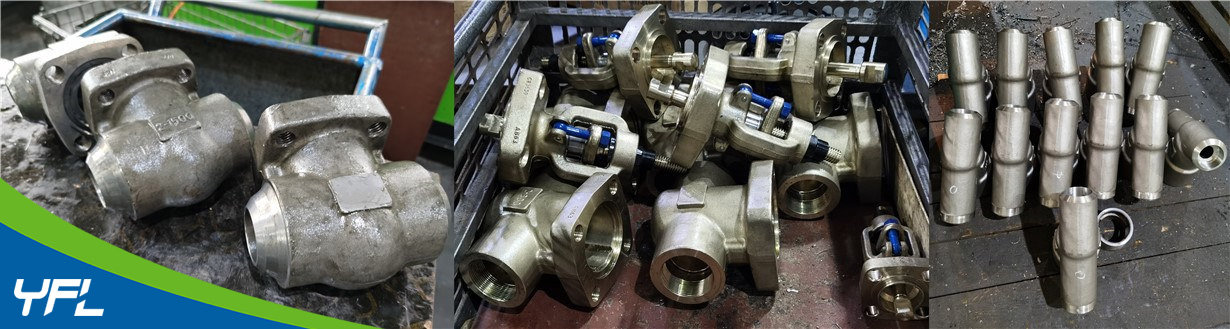

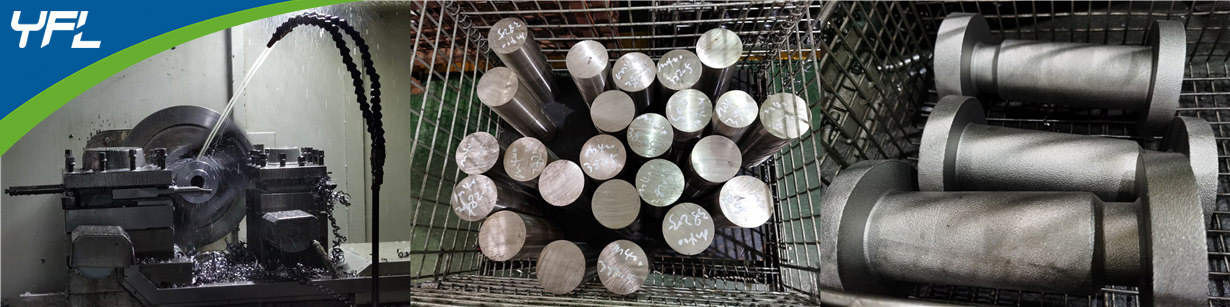

The forging or round bar are machined to be forged valves with BW ends, SW ends, Threaded ends as request.
