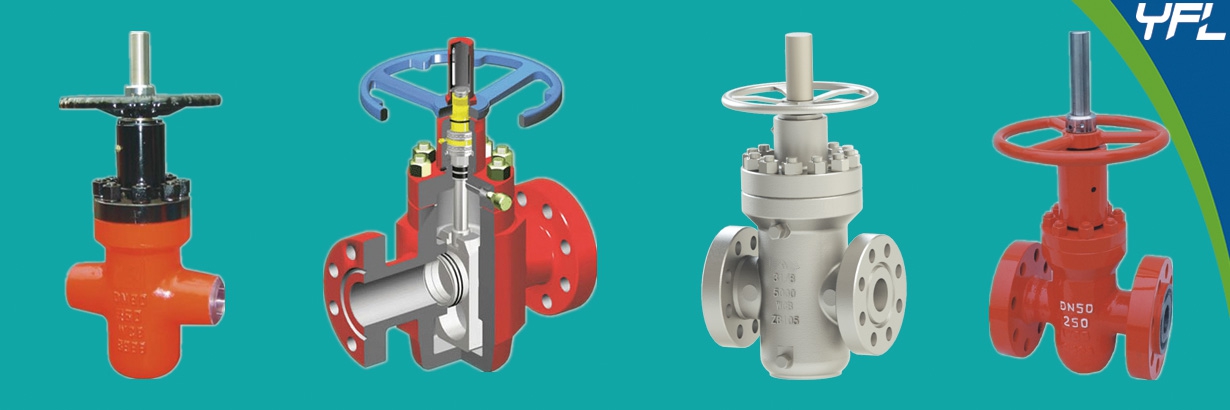

API 6A / API 6D High Pressure Oilfield Slab Gate Valves

YFL high pressure slab gate valves are designed according to API 6A or API 6D to be suitable for installation at oilfield or transporation pipeline for Oil & Gas.
  • Size:

    10''-12'', DN250-DN300
  • Pressure:

    1500lbs, 2500lbs, PN260, PN420, 5000PSI
  • Body:

    WCB, Cr Mo Steel, Alloy steel
  • Stem:

    Stainless steel
  • Seat:

    Alloy steel welded hard alloy
  • Face to Face:

    ASME B16.10
  • Design standards:

    API 6A, API 6D
  • Medium:

    Petroleum, natural gas, water
  • products details

YFL slab gate valves are usedly widely in transportation pipeline for Oil & Gas, storage device for Oil, Oil field, city gas pipeline and urban water supply project etc. When pipeline need to be cleaned by pigging equipments, the slab gate valve should be with through conduit.

YFL slab gate valves technical features:


1. Single or double slab gate available
2. With through conduit or without through conduit available
3. Slab gate with diversion hole for pipeline pigging and longer service life duo to protection of sealing face
4. Anti-abrasion and anti-corrosive sealing materials realize long working life
5. Pressure relief type disc avoids abnormal pressure increasing caused by temperature change to ensure safe working


API 6A Slab gate valves, API 6D Slab gate valves


API 6A High pressure slab gate valves for oilfields production


API 6D API 6A Oilfield Slab gate valves


Why Choose YFL?

1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from raw materials, machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Customizable, Flexible,  Short delivery time


Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "


YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and improve process for your projects.

For more solutions, please visit www.YFLvalve.com and contact YFL at sales@YFLvalve.com.
