LF2 High Pressure Top Entry Ball Valves

YFL LF2 High pressure top entry ball valves are used for cryogenic service under high working pressure with forged steel body and less leakage point to achieve low emission.
  • Size:

    2''-24''
  • Pressure:

    150lbs-2500lbs
  • Body:

    A105, LF2, LF3, F304, F316, F51, F53, F55, F904L
  • Seat:

    PTFE, RPTFE, NYLON, DEVLON, MOLON, Metal Seated
  • Face to Face:

    ASME B16.10, API 6D
  • Test:

    ISO 5208, API 6D
  • Connection Ends:

    Flanged end, BW Ends,
  • Design standards:

    API 6D
  • products details

YFL High pressure forged steel top entry ball valves are widely installed in high pressure applications for convenient online maintenance in oil & gas production and transporoation, oil refinery, petrochemical, metallurgy and power etc.

YFL High pressure forged steel top entry ball valves technical features:

1. Top entry structure makes the ton entry ball valves can be online maintenance without removing the valve from the pipeline.
2. One piece forged body with sufficient wall thickness and high strength bolts can stand high working pressure and can be weleded directly to the pipeline.
3. Seat with bevel angle design eliminates accumulation of impurities.
4. Realize reliable sealing through pre-load spring under zero pressure and lower pressure condition. Ensure excellent sealing performance during fire condition with additional expanding graphite.
5. When there are damages between the valve seat and ball, emergency sealing can be achieved as secondary sealing with grease injection through grease injection valve for grease gun. There is a check valve in the grease injection valve to prevent the grease from spilling under pressure from the ball valve.
6. Extended stem are available for underground buried applications
7. With Double block and double bleed design, the working medium trapped in the valve cavity can be discharged through drain and bleed valves, and the working pressure increasing in the valve cavity can be relieved automatically through seat at outlet side.
8. Less leakage point, Lower torque, lower maintenance cost and longer working life


Extended stem top entry ball valves, Cryogenic LF2 top entry ball valves, High pressure top entry ball valves

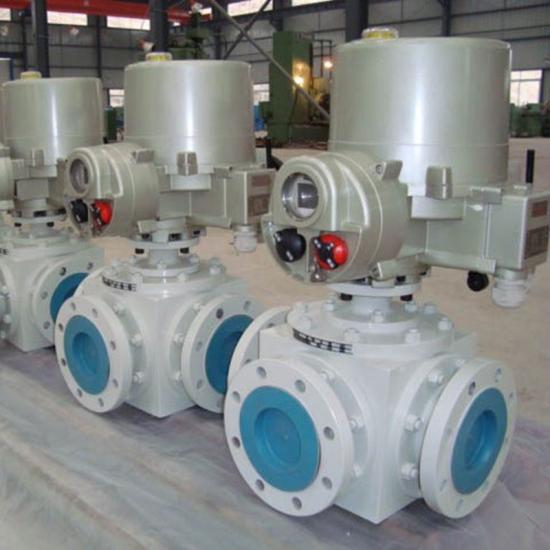

Top entry three way ball valves, Cryogenic top entry ball valves



Extended stem top entry ball valves, high pressure forged steel top entry ball valves


Why Choose YFL?

1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from raw materials, machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Customizable, Flexible,  Short delivery time


Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "



YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and improve process for your projects.

For more solutions, please visit www.YFLvalve.com and contact YFL at sales@YFLvalve.com.
