Hydraulic slow closing LLDPT Lined check valves
Mining

Wafer Ends Heavy Duty Mining Slurry Valves

YFL wafer type heavy duty mining slurry valves are designed for heavy duty mining slurry with solids under 150psi high working pressure in mining projects to solve abrasion problems.
  • Size:

    DN50-DN1000
  • Pressure:

    150PSI
  • Body:

    DI, CF8, CF8M
  • Seat:

    NR, EPDM
  • Operation:

    Manual, Pneumatic, Electric available
  • Flange:

    ASME B16.5
  • Temperature:

    NR≤70℃, EPDM≤110℃
  • Knife:

    SS304, SS316, SS2205
  • products details

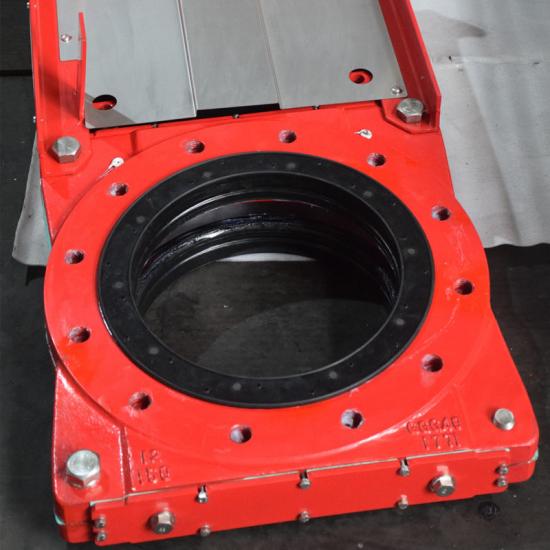

YFL wafer type heavy duty mining slurry knife gate valves are wear resistant to abrasive mining slurry.
The raw material of the abrasion resistant rubber seat is imported from foreigh country. The rubber seat has excellent performance in abrasion resistance.

YFL wafer type heavy duty mining slurry knife gate valves features:

1. The body is fully lined with abrasion resistant rubber seats which is replacebale
2. Self-seal rubber seats make the knife replacement in line
3. Grease injection in-line makes the maintenance more easily
4. When fully open or closed, the valve is locked automatcially to avoid misoperation
5. Corrosion resistant epoxy fusion bonded coating

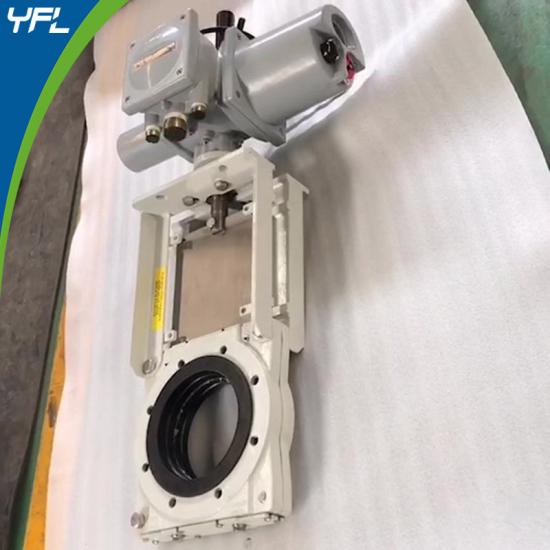

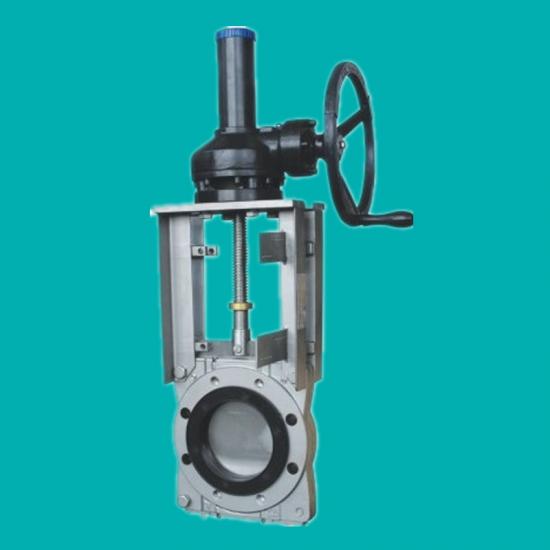

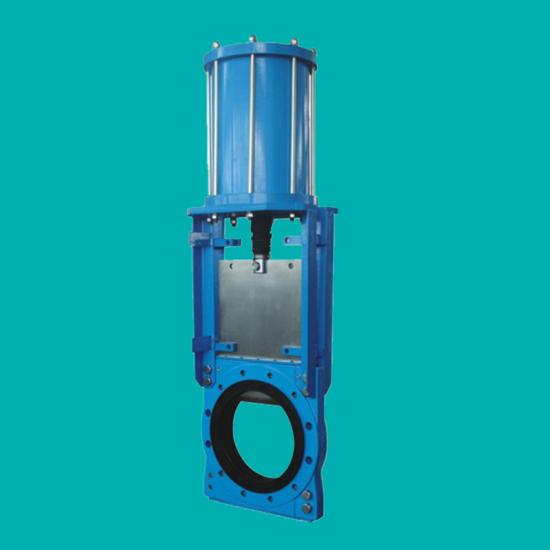

6. Various operation ways: Manual, pneumatic, electric, hydraulic avaliable
7. Up to 150psi working pressure, higher working pressure than flanged ends

Why Choose YFL?

1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from ceramic raw materials production, ceramic parts machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Customizable, Flexible,  Short delivery time

Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "


YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and create values for your projects.


heavy duty mining slurry knife gate valves


large size high pressure mining slurry knife gate valves
