Pneumatic PFA Lined Flanged Butterfly Valves

YFL Pneumatic PFA lined butterfly valves have body and disc fully lined with PFA to be applied for corrosive medium in Chemical, Power, Metallurgy and Petroleum industry.
  • Size:

    1 1/2''-48'', DN40-DN1200
  • Pressure:

    PN6, PN10, PN16, 150lbs
  • Body:

    GG25, GGG40, WCB, CF8
  • Operation:

    Manual, Pneumatic, Electric
  • Connection Ends:

    Wafer, Lug, Flanged
  • Design standards:

    MSS SP-67
  • Lining:

    FEP, PFA
  • Disc:

    CI, DI, WCB, CF8
  • products details

YFL Pneumatic PFA lined butterfly valve adopts butterfly disc as open and close component to cut off or connect the flow by 90 degree rotation with small operation torque. The PFA lined butterfly valve can be also used to regulate the flow by differnt degree rotation.

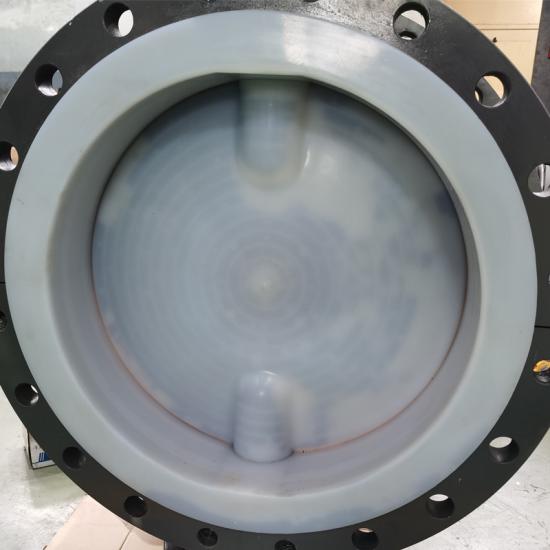

YFL Pneumatic PFA lined butterfly valve has two-pieces body and disc all lined with PFA or FEP so that the medium only contact with fluoroplastic which is anti-corrosive material against almost all corrosive service. The surface of FEP or PFA lining inside the body is very smooth so that the flow resistance is small and CV value is high.

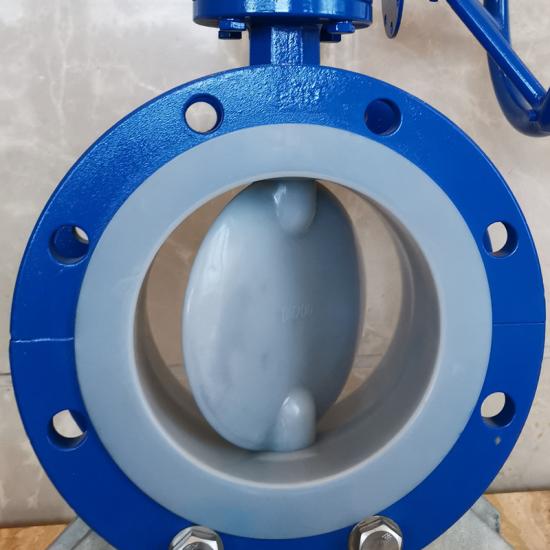

YFL Pneumatic PFA lined butterfly valve has center line structure with bidirectional seal. And the smooth sealing face between the body lining and disc lining can achieve excellent tightness with zero leakage.

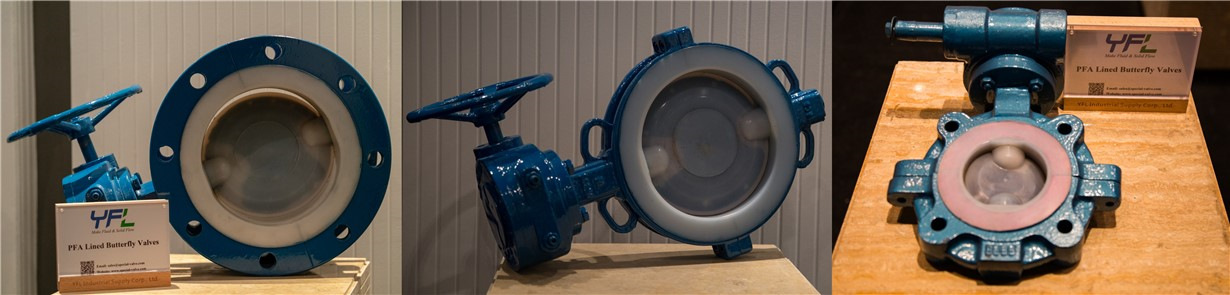

FEP PFA Lined butterfly valves


PFA lined butterfly valves

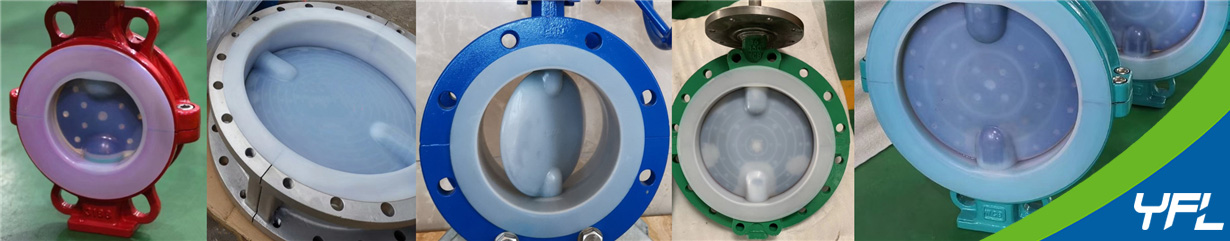

Fully Lined PFA butterfly valves


FEP lined butterfly valves


PFA lined butterfly valves
