Hydraulic slow closing LLDPT Lined check valves
Marine & Water

Non Slam Silent Check Valves

YFL Non slam silent check valves are installed after the pump in water supply and drainage pipeline system.
  • Size:

    DN40-DN600
  • Pressure:

    PN10, PN16
  • Body:

    GG25, GGG40, GGG50
  • Seat:

    Brass
  • Flange:

    EN1092-1, ASME B16.5
  • Disc:

    GGG40, GGG50
  • Medium:

    Water
  • Spring:

    SS304
  • products details

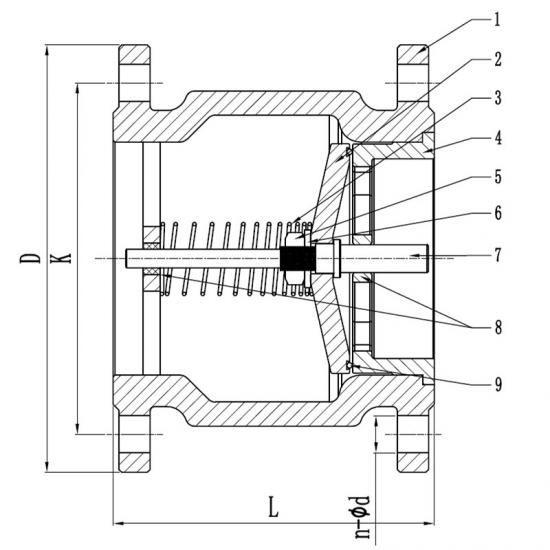

YFL non slam silent check valve mainly includes body, disc, spring, stem and seat.


YFL non slam silent check valve technical features:


1. The valve disc is guided by the stem at center axis, the valve is opened and closed easily.


2. The disc is spring loaded, the valve can be installed horizontally and vertically.


3. When the valve is closed quickly, the water hammer can be eliminated effectively,  the sealing performance is excellent and there is no noise duirng closing.


4. Compact design, small vomue, light weight, small flow resistance, long service life.



Non slam silent check valves
