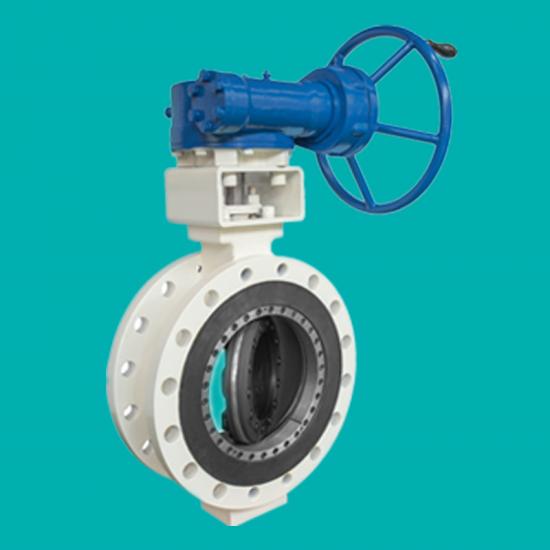

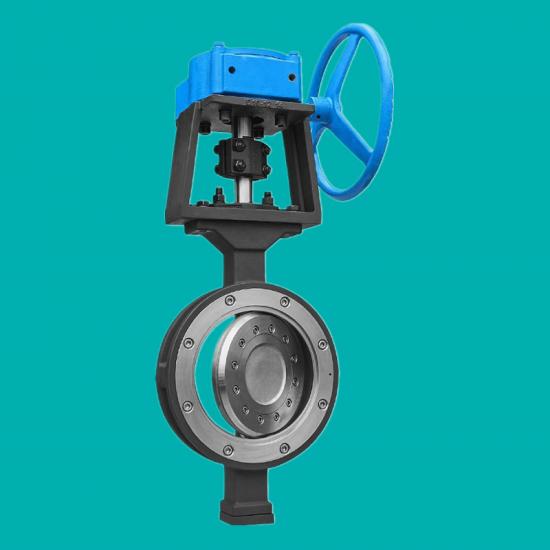

High Temperature Metal Seated Triple Eccentric Butterfly Valves

YFL High temperature metal seated triple eccentric butterfly valves with replaceable metal seat are widely used in high temperature applications like city gas and district heating system.
  • Size:

    DN50-DN1400, 2''-56''
  • Pressure:

    PN10-PN420, 150lbs-2500lbs
  • Body:

    WCB, CF8, CF8M, 304, 316, 310S,2520
  • Seat:

    Stainless steel, Stellite overlaid
  • Connection Ends:

    BW Ends, Wafer ends, Lugged ends, Flanged edns
  • Design standards:

    API 599
  • Leakage Class:

    Zero leakage
  • Temperature:

    -196℃—850℃
  • products details

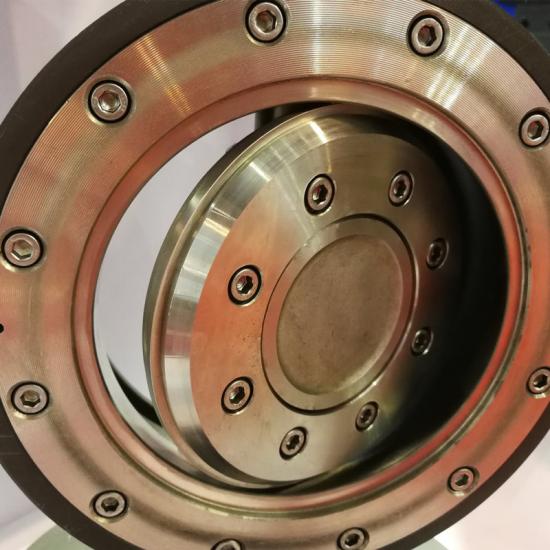

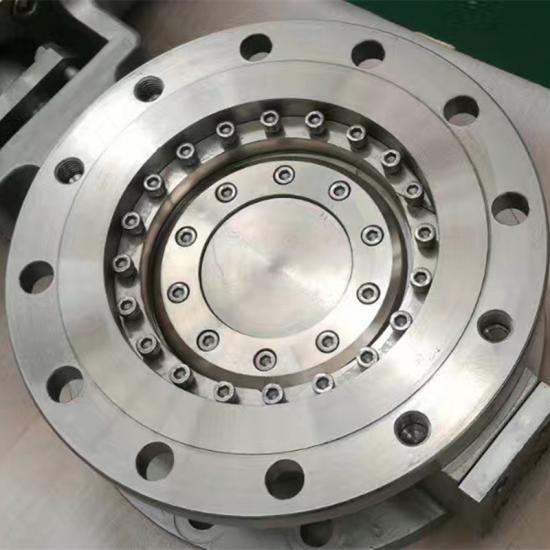

YFL metal seated triple eccentric butterfly valves has fully metal to metal seal design to be applicable for high pressure and high temperature working conditions with economic cost. The fully metal to metal seal butterfly valves are widely used in city gas and district heating system.

YFL metal metal triple eccentric butterfly valves technical features:

1. Triple eccentric structure, zero friction and small flow resistance;
2. Excellent sealing performance, bidirectional zero leakage;
3. Smaller operation torque, lower actuator cost;
4. Wear resistant metal seat with stellite overlaid, much longer service life
5. Suitable for high pressure and high temperature in various industries


Fully metal seated high temperature butterfly valves for district heating


Pneumatic high temperature triple eccentric butterfly valves


Why Choose YFL?


1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from ceramic raw materials production, ceramic parts machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Short delivery time, no min. order request

Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "


YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and create values for your projects.
