Low Temperature Valves

Forged Steel Cryogenic Ball Valves

YFL forged steel cryogenic ball valves with forged steel body and extended stem are designed for applications with low temperature.
  • Size:

    DN8-DN100, 1/4''-4''
  • Pressure:

    PN10-PN420, 150lbs-2500lbs
  • Body:

    LF2, F304, F316, F904L, F51, F53, F55
  • Seat:

    PCTFE
  • Operation:

    Lever, Handwheel, Gear operated, Pneumatic actuated, Electric actuated
  • Design standards:

    BS5351
  • Leakage Class:

    Class VI
  • Medium:

    LNG, LPG, Liquid oxygen, Liquid Nitrogen
  • products details

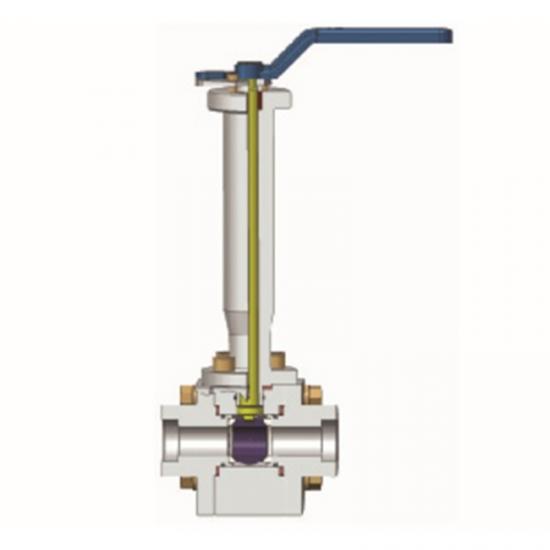

YFL forged steel cryogenic ball valves have three-piece body or two-piece body, both body are in material of forged steel LF2, LF3, F304, F316, F904L, F51 and the seat is PCTFE which is suitable for low temperature working conditions.


YFL forged steel cryogenic ball valves have extended stem and insulation plate so that the packing and actuator can work reliably.



YFL forged steel cryogenic ball valves have flanged ends, BW ends, SW ends and threaded ends according to the connection ends of pipeline. And reduced bore and full bore are available as request.
