Pneumatic Ceramic Knife Gate Valves for limestone in thermal power plants in Bosnia and Herzegovina
09, Sept, 2019

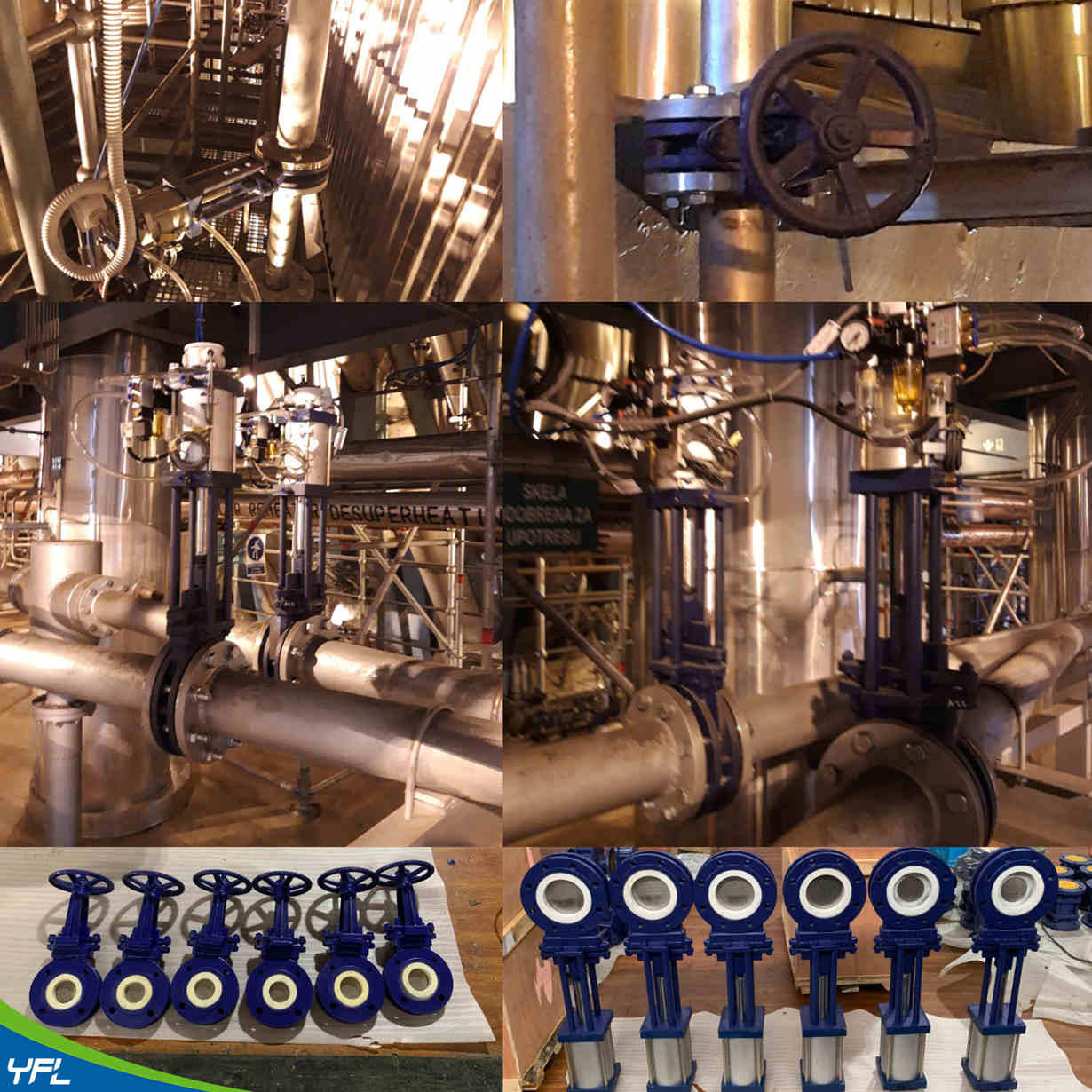

YFL pneumatic ceramic knife gate valves and manual ceramic knife gate valves have been installed in a new line limestone piping during client's last overhaul in May.

These ceramic knife gate valves are an integral part of the pipeline for transport limestone from silo to boiler furnace in Thermal Power Plant STANARI 300MW in Bosnia and Herzegovina.

The detailed working conditions are as follows:

1. Max.operating pressure in the pipeline is 1MPa
2. Max. capacity of the pipeline is 6t/h
3. The temperature in the system is 20 degre C, except in the zone of valves with manual control, where max. temperature is 200 degree C.

These pneumatic ceramic knife gate valves included control components: electromagnetic valves, quick couplings, hoses and inductive sensors for position detection are currently in function and work without any problem.

These ceramic knife gate valves will body lining, disc sealing ring and seat in materials of wear resistant ceramic will solve abrasion problems and extend the working life to save maintenance cost and reduce shutdown loss.

Welcome to know more about who we are and feel free to contact us at sales@YFLvalve.com to solve problems.

ceramic knife gate valves for limestone
