Abrasion Resistant Valves

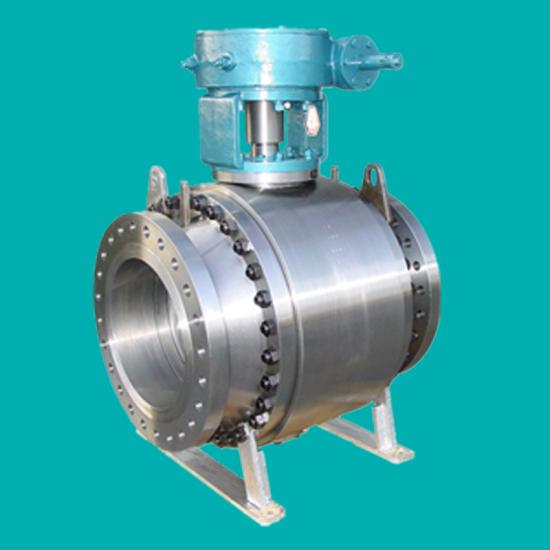

Abrasion Resistant WC9 Metal Seated Ball Valves

YFL Abrasion resistant metal seated ball valves adopt metal seat to replace soft seat to be suitable for abrasive solid particles at high temperature.
  • Size:

    1/2''-48'', DN15-DN1200
  • Pressure:

    150lbs-2500lbs, PN10-PN420
  • Body:

    A105, WCB, WC9, CF8, LF2, LCB, CF8M
  • Seat:

    A105, LF2, F304, F316+overlaid STL, Ni60, TCC
  • Connection Ends:

    API 6D
  • Leakage Class:

    Class V, Class VI
  • Ball:

    A105, LF2, F304, F316+Overlaid STL, Ni60, WC, TCC
  • Medium:

    Abrasive solid particles
  • products details

When there are abrasive solid particles in the mediums, the soft seat of ball valve like PTFE, Nylon, Devlon will be worn out quickly. The metal seated ball valves are designed to solve the abrasion problems caused by abrasive mediums. The seat of ball valves are changed from soft material to hard metal material. And both the ball and seat of metal seated ball valves are overlaid with different hard alloy like stellite 6, Ni60 and tungsten carbide coating to be wear resistant against different mediums.


To achieve excellent metal to metal sealing performance, the ball and the seat of metal seated ball valves are grounded to each other to make sure the sealing faces match perfectly.



Wear resistant Metal seated ball valves production


The body of the metal seated ball valves can be LF2 for cryogenic service,  WC9 for high temperature working conditions , WCB for non-corrosive service at normal working temperature  and CF8  for corrosive service.


Abrasion resistant metal seated ball valves for low temperature, high temperture


Why Choose YFL?

1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from raw materials, machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Customizable, Flexible,  Short delivery time


Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "


YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and create values for your projects.
