YFL Pneumatic Control Ceramic Ball Valves For Fly Ash Transfer System
21, Nov, 2023


YFL Wear resistant ceramic ball valves are exported to old customer in Turkey. These ceramic ball valves are equipped with pneumatic actuators and accessories for fly ash transfer system.


The detailed material and technical specifications of the pneumatic control ceramic ball valves are as below:


Body Material : Forged Carbon Steel A105

Ball material: ZrO2 ceramic

Seat material  : 99% Al2O3,99.7%Al2O3 (ceramic)

Control : Double Acting Pneumatic Actuator + 5/2 Namur Valve + Switch Box
 Working Temperature :  165°C (max.)
 Air Pressure : 6 bar

Size : DN 50
Flange Connection : PN 10
Quantity : 4 set

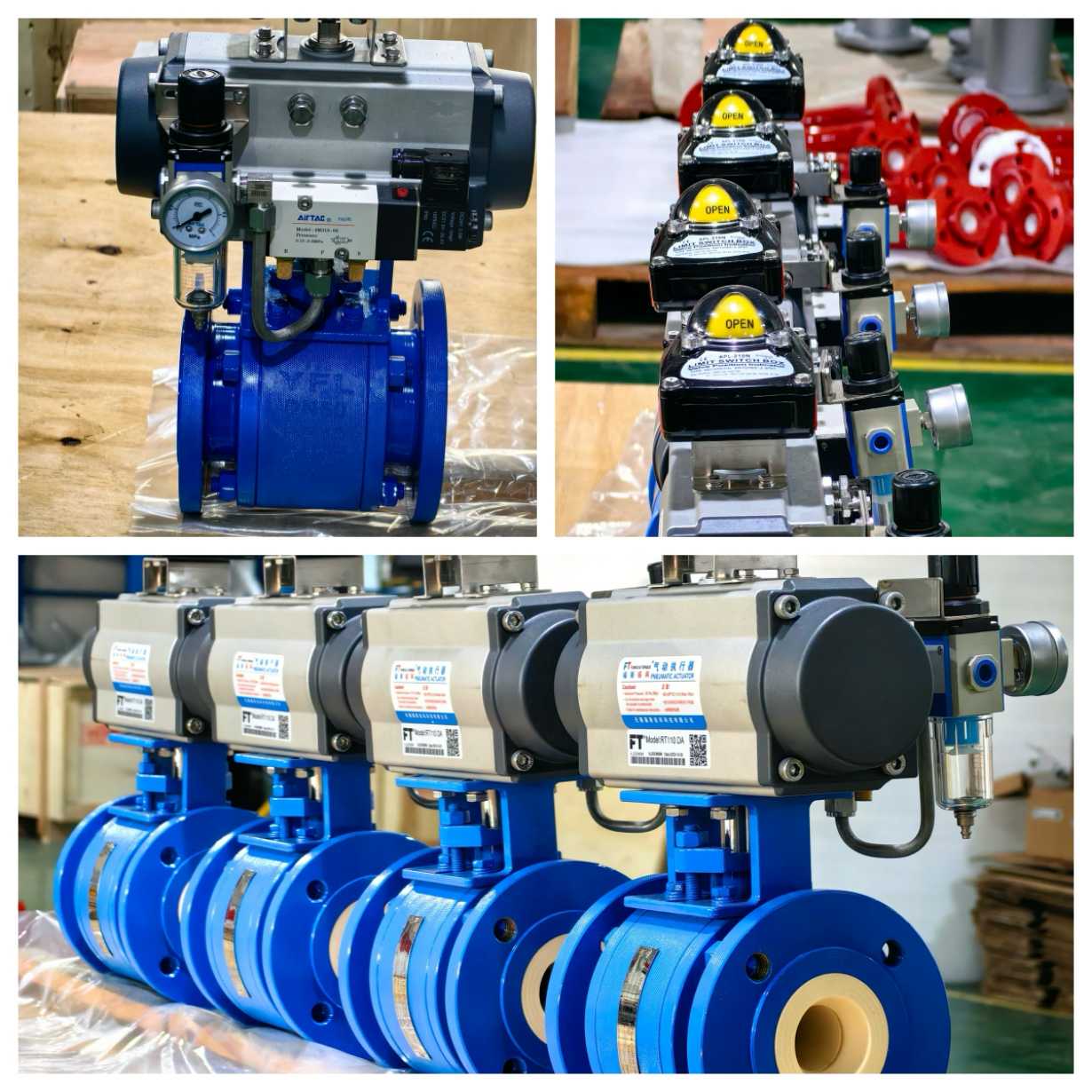

YFL pneumatic control ceramic ball valves

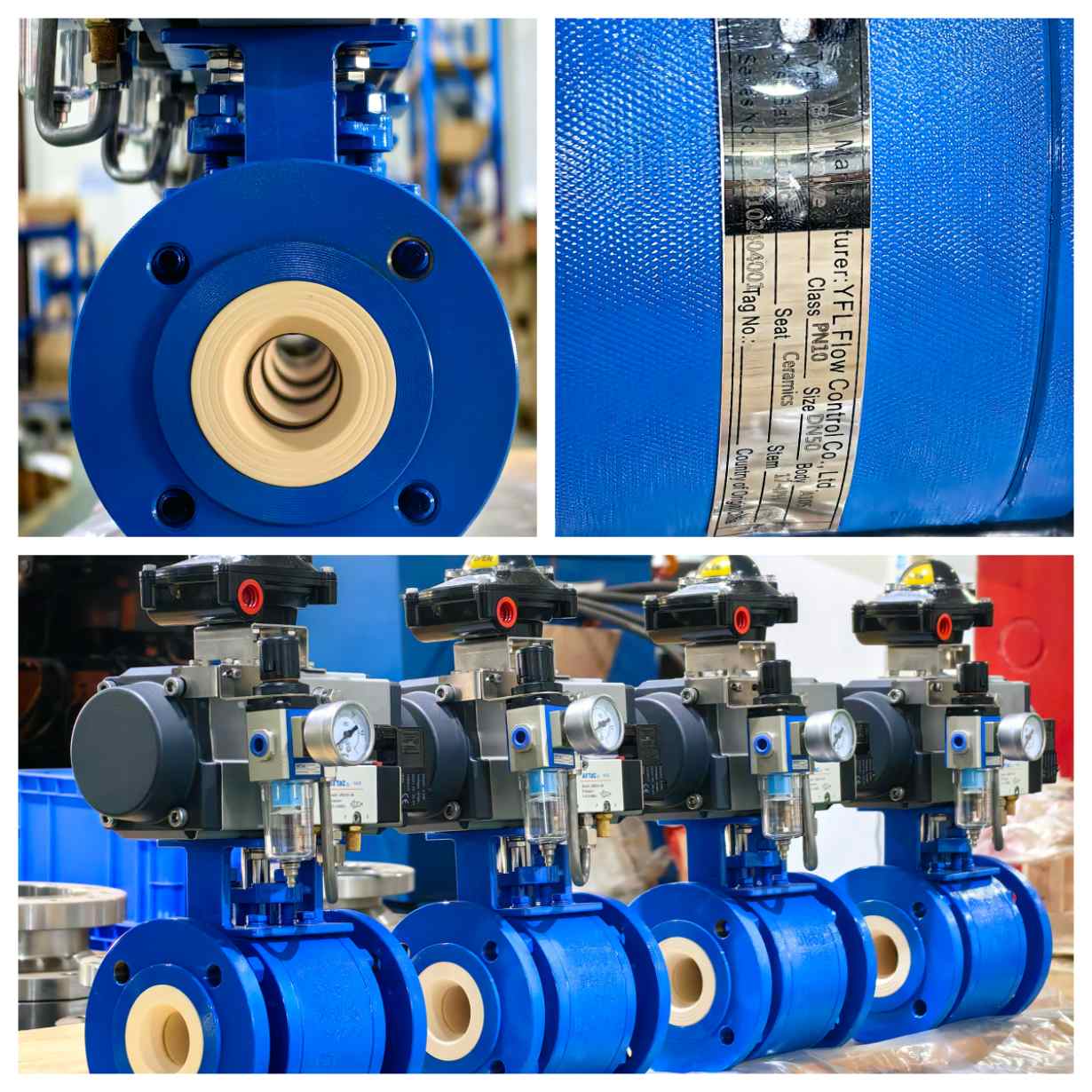

YFL Pneumatic control ceramic ball valves

    Please feel free to contact sales@YFLvalve.com to solve piping problems.
