Ceramic Knife Gate Valves solve abrasion problem in Power & Mining
High Temperature Valves

Wear Resistant High Temperature Inconel 825 Ball Valves

YFL Wear resistant high temperature Inconel 825 ball valve has ball and seat in material of Inconel 825 and overlaid with tungsten carbide coating to be wear resistant at high temperature.
  • Size:

    1/2''-48'', DN10-DN1200
  • Pressure:

    150lbs-2500lbs, PN10-PN420
  • Body:

    WC6, WC9, CF8, CF8M, F304, F316, 310S
  • Seat:

    Inconel 825+Tungsten carbide coating
  • Test:

    API 598
  • Design standards:

    API 6D
  • Ball:

    Inconel 825+Tungsten carbide coating
  • Medium:

    Abrasive and corrosive solid particles
  • products details

YFL Inconel 825 metal seated ball valves are designed for corrosive mediums especially at high temperature, when the mediums are abrasive, the Inconel 825 ball and seat are overlaid with tungsten carbide coating to be abrasion resistant. The material of Inconel 825 is super alloy on basis of Fe, Ni and Cobalt, it can work well for long time at high pressure high temperature above 600℃. The corrosion resistance of Inconel 825 is still excellent even at high temperature.

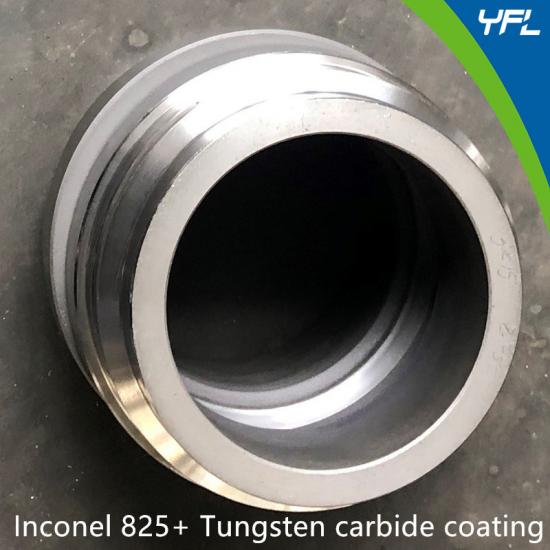

The Inconel 825 ball and seat are first overlaid with tungsten carbide coating, and then the ball and seat are grinding precisely to match tightly to make sure the metal to metal seal of the Inconel 825 metal seated ball valves is zero leakage.


Tungsten carbide coating metal seated ball valves


The excellent abrasion resistance of tungsten carbide coating makes the metal seated ball valves suitable for mediums with solid particles in industries of Coal chemical, Polysilicon, Petrochemical, Power, Mining and Metallurgy etc.


Thanks to the advantage of Inconel 825 and Tungsten carbide coating, YFL Inconel 825 ball valves with tungsten carbide coating have totally solve abrasion and corrosion problem at high temperature for extreme harsh working conditions.


Inconel 825 metal seated ball valves


Why Choose YFL?

1. Experienced in providing best solutions according to various sever working conditions to solve problems
2. Strict quality control from raw materials, machining to pressure test and function test
3. Professional technical support and fast response trouble shooting
4. Approved & Registered vendor of Glencore & Umicore
5. Successful cases and reference list available
6. Customizable, Flexible,  Short delivery time


Testimonials from Glencore in Mining industry

"We are very happy with the results so far, and the valves seem to be top quality.
You must understand that this factory has some of the world's toughest conditions with regards to abrasive and corrosive solutions. We dissolve metals and most products and suppliers we tested in our applications failed. "


YFL for 誉丰利 means benefiting from reputation.

We cast brand and forge reputation by quality and service.

We focus on your satisfaction and our responsibility.

Let‘s solve problems and create values for your projects.
